Molding gold plug elink hdmi for HDTV Xbox

FOB Reference Price:Get Latest Price
$0.50 - $2.00 / Pieces | 1000 Piece/Pieces elink hdmi (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Color:
Black,Blue,Red
Place of Origin:
Guangdong, China
Brand Name:
Elink HDMI cable
Model Number:
HD-1040
Type:
hdmi
Application:
PS3,HDTV,HD Player,Xbox,STB
Packing:
Polybag/Blister/Giftbox/OEM packing
Outer Diameter:
OD 4.2mm-8.0mm
Connector Color:
Gold
Shielding:
Braid, Aluminum foil,Braid
Gender:
Male-Male
Product Name::
Molding gold plug elink hdmi for HDTV Xbox
Wire guage:
19pin to 19pin, AWG28/30/26/24 (Optional)
Plated::
Gold/Nickel (Optional).
Length::
up to 50m(Optional)
Conductors:
Bare Copper
Connector::
Gold planted
Shielding level::
Triple shielding or quad shielding
Connector types:
A type,C type,D type
Certificate::
HDMI ATC,Adopter,FCC,ROHS,CE,ISO
Connector Type:
HDMI
Supply Ability
Supply Ability:
30000 Piece/Pieces per Week elink hdmi
Packaging & Delivery
Packaging Details
elink hdmi,PE bag, Blister packing or according to customers request.
Port
Shenzhen
Lead Time :
15 working days opon receiving your deposit

Molding gold plug elink hdmi for HDTV Xbox



Item No:Elink  HD-1040



  What is HDMI cable?

High Definition Multimedia Interface (HDMI) has become a popular choice for home theaters and PC entertainment. HDMI combines both digital video and audio into one cable. There are two options of HDMI cable that can be used with home entertainment: Standard HDMI and High Speed HDMI. Both cable types are available with Ethernet as an option. This will allow for the HDMI cable to be used for an Internet connection along with the video and audio. A "Standard" HDMI cable will support up to 1080i and 720p video standards while a "High Speed" HDMI cable will support 1080p, 4K, 3D and Deep Color. HDMI is also compatable with DVI and a person is able to have a cable with both connectors. This is useful for connecting PC's or laptops with HDMI ports to LCD monitors with DVI ports.














  Structure----elink hdmi
  • Product Name: HDMI male to HDMI male cable with Gold-plated
  • Place of Origin: China
  • AWG: 19pin to 19pin, 28/30/26/24 (Optional)
  • Plated: Gold/Nickel (Optional).
  • Length: 1M to 15M(3FT to 50FT) or according to customer’s request.
  Features----elink hdmi
  • HDMI connectors are the new high definition standard for connecting HDMI equipped portable devices such as high definition camcorders.
  • This cable will allow you to connect your portable device to the standard HDMI connector  found on most televisions and A/V receivers.
  • specifications.
  • HDMI cable is designed to deliver both clear high definition video.
  • Connector Type: HDMI male to HDMI male
  • Connector: Gold planted
  • Shielding level: Triple
  • Shielding type: EMI
  • Supported Resolutions: 480i thru 1080p
  • Bandwidth: Single Link
  • HDMI Certified: Yes
  • HDCP Compliant: Yes
  • CEC Compliant: Yes
  • ROHS Compliant: Yes
  • UL Certified: Yes
  • Supports SACD: Yes
  • Supports TrueHD DTS-HD: Yes
  Electricals----elink hdmi
  • 100% Open and Short Test.
  • Hi-pot: DC 300V, 10ms.
  • Insulation Resistance: 10M Ohm Min.
  • Contact Resistance: 5.0 Ohm Max.
  • Working Temperature: -25ºC ~ +85ºC
  Mechanical----elink hdmi
  • Premold: PE Low Density
  • Insulator Material: High-Temperature thermoplastic (UL94V-0)
  • Contact: Copper Alloy.
  • Insertion Force: 44.1 N Max.
  • Withdraw Force: 9.8 N Min.
Item Molding gold plug elink hdmi for HDTV Xbox

Place of origin

Shenzhen, Guangdong, China (Mainland)

Connector



Full 19pin HDMI port 24k gold plated

Wire spec

4P+5C+AL+D(simple sepc), 5P+4C+AL+D+B(standard spec)

Support



1080P, 3D, ethernet, 4K, audio return channel

Plug mould





PVC injection mould, bi-color mould, metal shell mould
CoverNylon mesh, cotton mesh


Application

HDTV, DVD player, set top box, xbox360, ps3, satellite, home studio…


Packing


1. Polybag,printed zip-lock bag or blister packaging are available.
2.According to customers.

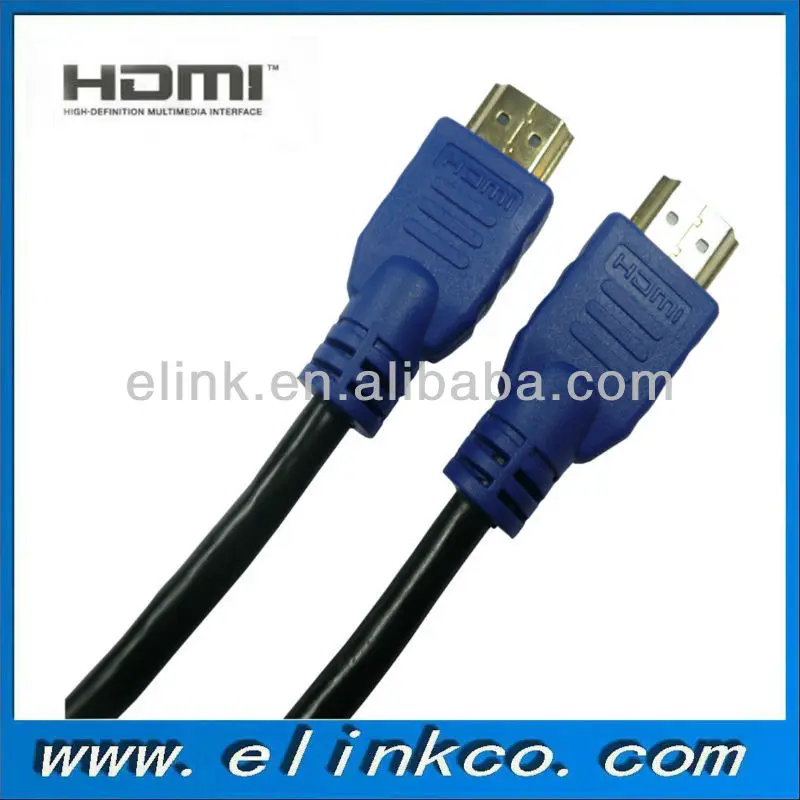

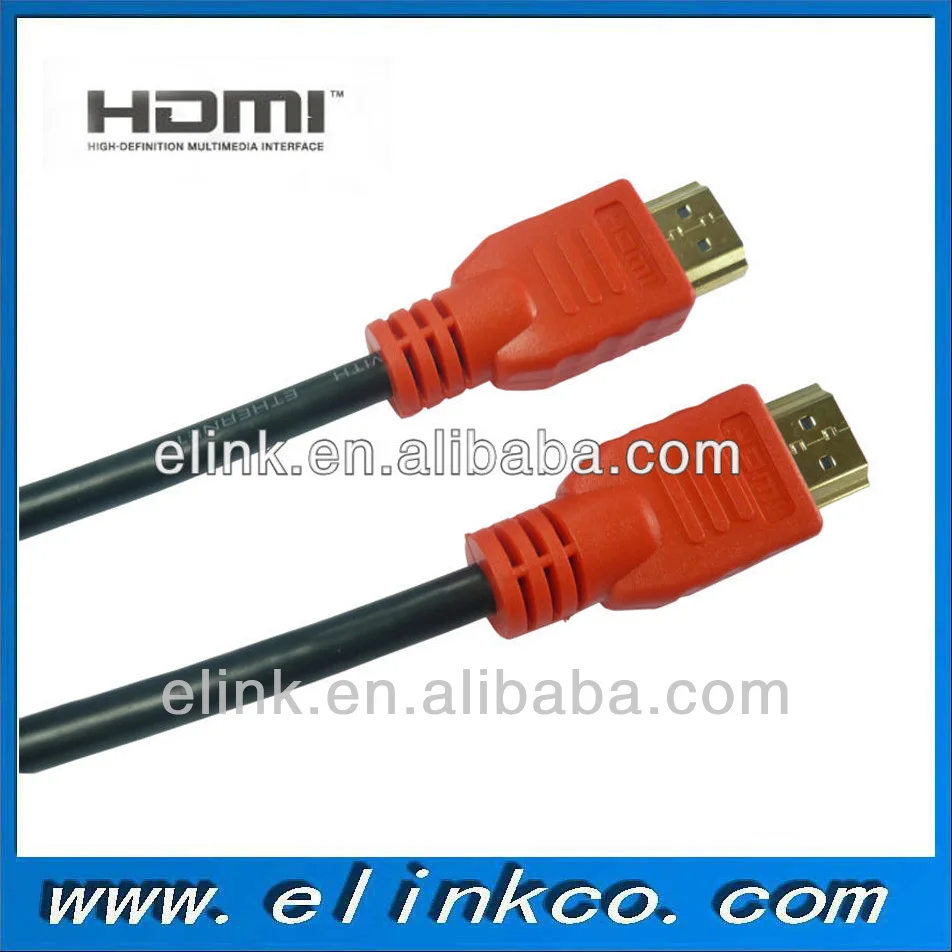

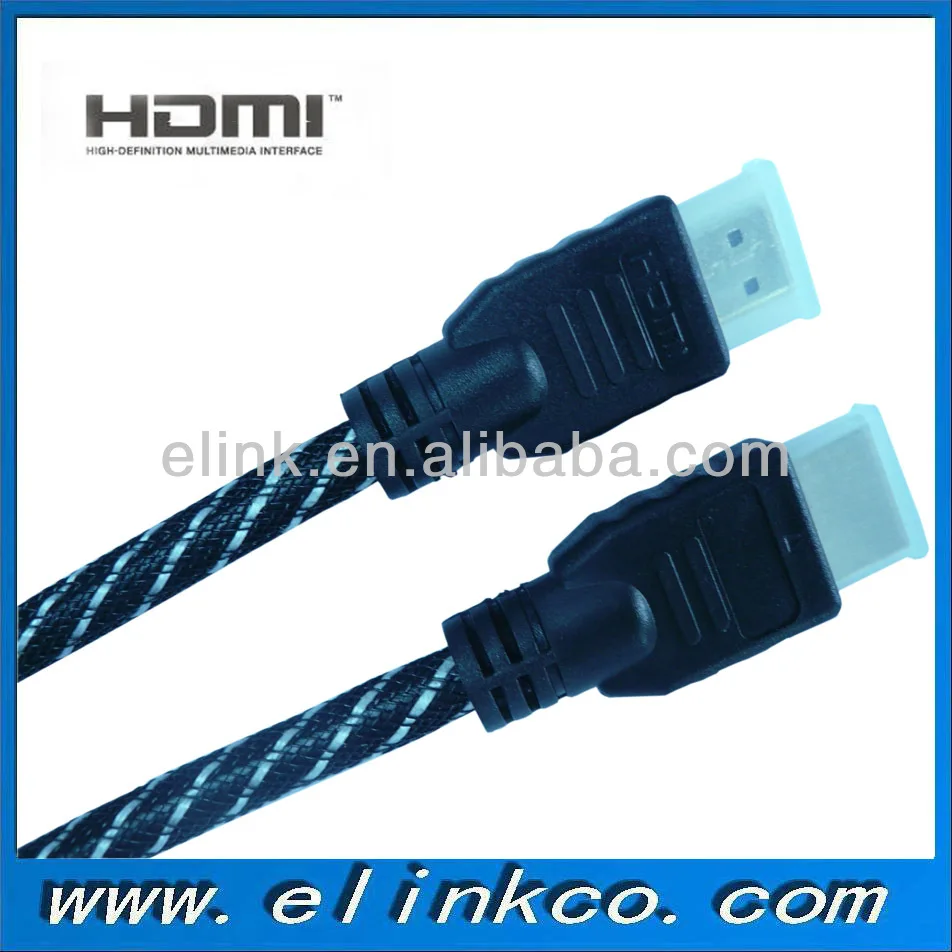

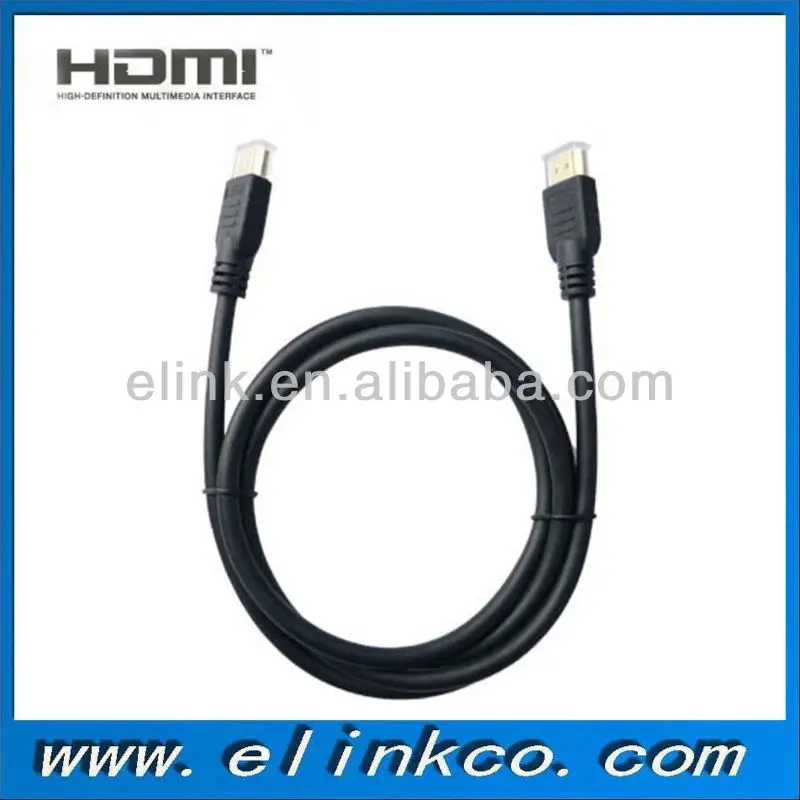

  Details----elink hdmi
