10m 20m 30m 50m black gold plug full high definition prolong hdmi cable

FOB Reference Price:Get Latest Price
$0.50 - $2.00 / Piece | 500 Piece/Pieces Elink Long meter hdmi cable (Min. Order)
Support Sea freight
Report Suspicious Activity
Quick Details
dual color
Place of Origin:
Guangdong, China
Brand Name:
Elink prolong hdmi cable
Model Number:
PS3,HDTV,HD Player,Xbox,STB
Polybag/Blister/Giftbox/OEM packing
Outer Diameter:
OD 4.2mm-8.0mm
Connector Color:
Braid, Aluminum foil,Braid
Product Name::
Black gold plug full high definition prolong hdmi cable
Wire guage:
19pin to 19pin, AWG28/30/26/24 (Optional)
Gold/Nickel (Optional).
up to 50m(Optional)
Bare Copper
Gold plated
Shielding level::
Triple shielding or quad shielding
Connector types:
A type,C type,D type
Connector Type:
Supply Ability
Supply Ability:
30000 Piece/Pieces per Week Elink HDMI cable
Packaging & Delivery
Packaging Details
Elink Long meter hdmi cable,PE bag, Blister packing or according to customers request.
Lead Time :
15 working days upon receiving your deposit

10m 20m 30m 50m black gold plug full high definition  prolong hdmi cable


Item No:Elink  HD-1040


1. Introduction


What is HDMI cable?


High Definition Multimedia Interface (HDMI) has become a popular choice for home theaters and PC entertainment. HDMI combines both digital video and audio into one cable. There are two options of HDMI cable that can be used with home entertainment: Standard HDMI and High Speed HDMI. Both cable types are available with Ethernet as an option. This will allow for the HDMI cable to be used for an Internet connection along with the video and audio. A "Standard" HDMI cable will support up to 1080i and 720p video standards while a "High Speed" HDMI cable will support 1080p, 4K, 3D and Deep Color. HDMI is also compatable with DVI and a person is able to have a cable with both connectors. This is useful for connecting PC's or laptops with HDMI ports to LCD monitors with DVI ports.



 2. Application

HDMI cable Structure:
  • Product Name: HDMI male to HDMI male cable with Gold-plated
  • Place of Origin: China
  • AWG: 19pin to 19pin, 28/30/26/24 (Optional)
  • Plated: Gold/Nickel (Optional).
  • Length: 1M to 15M(3FT to 50FT) or according to customer’s request.
HDMI cable Features:
  • HDMI connectors are the new high definition standard for connecting HDMI equipped portable devices such as high definition camcorders.
  • This cable will allow you to connect your portable device to the standard HDMI connector  found on most televisions and A/V receivers.
  • specifications.
  • HDMI cable is designed to deliver both clear high definition video.
  • Connector Type: HDMI male to HDMI male
  • Connector: Gold planted
  • Shielding level: Triple
  • Shielding type: EMI
  • Supported Resolutions: 480i thru 1080p
  • Bandwidth: Single Link
  • HDMI Certified: Yes
  • HDCP Compliant: Yes
  • CEC Compliant: Yes
  • ROHS Compliant: Yes
  • UL Certified: Yes
  • Supports SACD: Yes
  • Supports TrueHD DTS-HD: Yes
HDMI cable Electricals:
  • 100% Open and Short Test.
  • Hi-pot: DC 300V, 10ms.
  • Insulation Resistance: 10M Ohm Min.
  • Contact Resistance: 5.0 Ohm Max.
  • Working Temperature: -25ºC ~ +85ºC
HDMI cable Mechanical:
  • Premold: PE Low Density
  • Insulator Material: High-Temperature thermoplastic (UL94V-0)
  • Contact: Copper Alloy.
  • Insertion Force: 44.1 N Max.
  • Withdraw Force: 9.8 N Min.
Item10m 20m 30m 50m black gold plug full high definition  prolong hdmi cable

Place of origin

Shenzhen, Guangdong, China (Mainland)



Full 19pin HDMI port 24k gold plated

Wire spec

4P+5C+AL+D(simple sepc), 5P+4C+AL+D+B(standard spec)



1080P, 3D, ethernet, 4K, audio return channel

Plug mould



PVC injection mould, bi-color mould, metal shell mould
CoverNylon mesh, cotton mesh


HDTV, DVD player, set top box, xbox360, ps3, satellite, home studio…

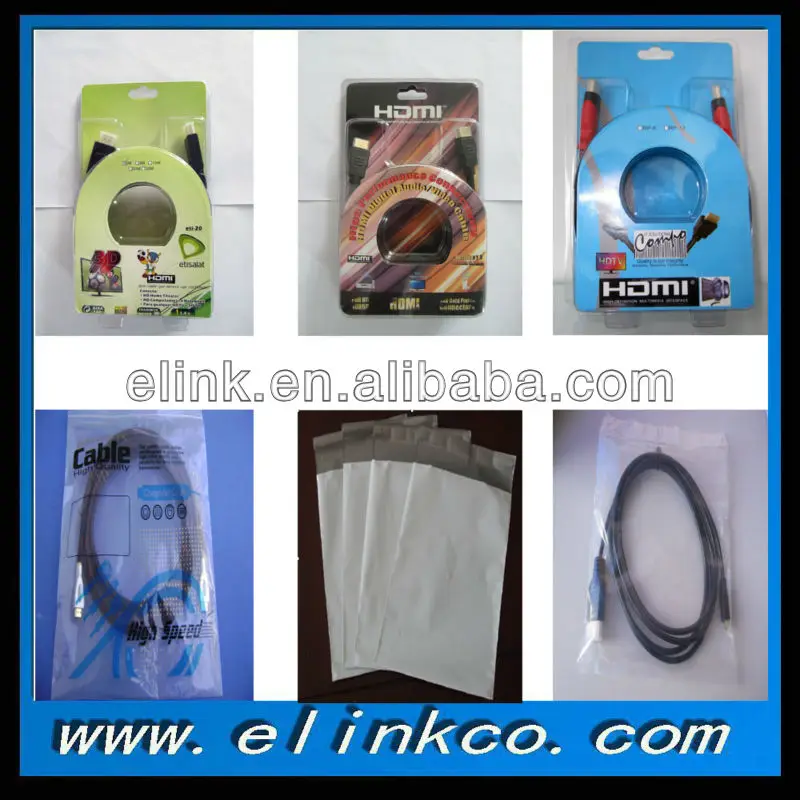

1. Polybag,printed zip-lock bag or blister packaging are available.
2.According to customers.

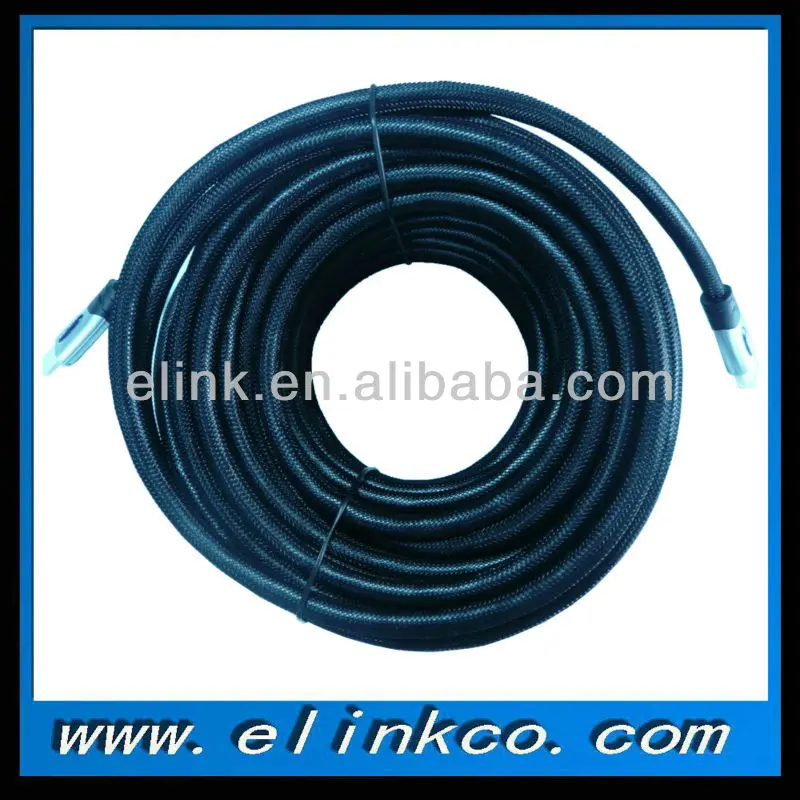

3. Product Photo:
4. Company Images:
