Black gold plated 360 degree swing hdmi cable supporting 3d ethernet 4K

FOB Reference Price:Get Latest Price
$0.50 - $2.00 / Pieces | 1000 Piece/Pieces 360 degree hdmi (Min. Order)
Color:
Black,Blue,Red etc
Length:
1.8M
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Elink HDMI cable
Model Number:
HDMI Cable
Type:
hdmi
Application:
PS3,HDTV,HD Player,Xbox,STB
Packing:
Polybag/Blister/Giftbox/OEM packing
Outer Diameter:
OD 4.2mm-8.0mm
Connector Color:
Gold
Shielding:
Braid
Gender:
Male-Male
Connector Type:
HDMI
Product::
Swing hdmi cable
Wire guage::
19pin to 19pin, AWG28/30/26/24 (Optional)
Plated::
Gold/Nickel (Optional).
Length::
1m up to 50m(Optional)
Conductors:
Bare Copper
Connecter::
Gold plated
Shielding level::
Triple shielding or quad shielding
Certificate::
HDMI ATC,Adopter,FCC,ROHS,CE,ISO
Connector types:
A type,C type,D type
Supply Ability
Supply Ability:
30000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Elink Swing hdmi cable : PE bag, Polybag,Blister packing or according to customers' request.
Port
Shenzhen
Lead Time :
15 working days upon receiving your deposit
Video Description

Black gold plated 360 degree swing hdmi cable supporting 3d ethernet 4K

1.Instruction of Swing  hdmi cable

High Definition Multimedia Interface (HDMI) has become a popular choice for home theaters and PC entertainment. HDMI combines both digital video and audio into one cable. There are two options of HDMI cable that can be used with home entertainment: Standard HDMI and High Speed HDMI. Both cable types are available with Ethernet as an option. This will allow for the HDMI cable to be used for an Internet connection along with the video and audio. A "Standard" HDMI cable will support up to 1080i and 720p video standards while a "High Speed" HDMI cable will support 1080p, 4K, 3D and Deep Color. HDMI is also compatable with DVI and a person is able to have a cable with both connectors. This is useful for connecting PC's or laptops with HDMI ports to LCD monitors with DVI ports.

2.Application of Swing hdmi cable







3. Construction of Swing 2.0v hdmi cable











3. Specification of  Swing hdmi cable

  • Product Name: Black gold plated 360 degree swing  hdmi cable supporting 3d ethernet 4K
  • Place of Origin: Shenzhen Guangdong China
  • AWG: 19pin to 19pin, 28/30/26/24 (Optional)
  • Plated: Gold/Nickel (Optional).
  • Length: 1M to 15M(3FT to 50FT) or according to customer’s request.
  • Conductor material :CU
  • Wire material :PVC
  • Connector: Gold plated or Ni plated with dust cover
  • Shielding level: Triple
  • Shielding type: EMI
  • Supported Resolutions: 480i thru 1080p
  • Bandwidth: Single Link



  • Item Black gold plated 360 degree swing  hdmi cable supporting 3d ethernet 4K

    Place of origin

    Shenzhen, Guangdong, China (Mainland)

    Connector



    Full 19pin HDMI port 24k gold plated

    Wire spec

    4P+5C+AL+D(simple sepc), 5P+4C+AL+D+B(standard spec)

    Support



    1080P, 3D, ethernet, 4K, audio return channel

    Plug mould





    PVC injection mould, bi-color mould, metal shell mould
    CoverNylon mesh, cotton mesh


    Application

    HDTV, DVD player, set top box, xbox360, ps3, satellite, home studio…


    Packing


    1. Polybag,printed zip-lock bag or blister packaging are available.
    2.According to customers.


4. Features of Swing  hdmi cable

  • HDMI connectors are the new high definition standard for connecting HDMI equipped portable devices such as high definition camcorders.
  • This cable will allow you to connect your portable device to the standard HDMI connector  found on most televisions and A/V receivers.
  • 100% Open and Short Test.
  • Hi-pot: DC 300V, 10ms.
  • Insulation Resistance: 10M Ohm Min.
  • Contact Resistance: 5.0 Ohm Max.
  • Working Temperature: -25ºC ~ +85ºC
  • Premold: PE Low Density
  • Insulator Material: High-Temperature thermoplastic (UL94V-0)
  • Contact: Copper Alloy.
  • Insertion Force: 44.1 N Max.
  • Withdraw Force: 9.8 N Min.

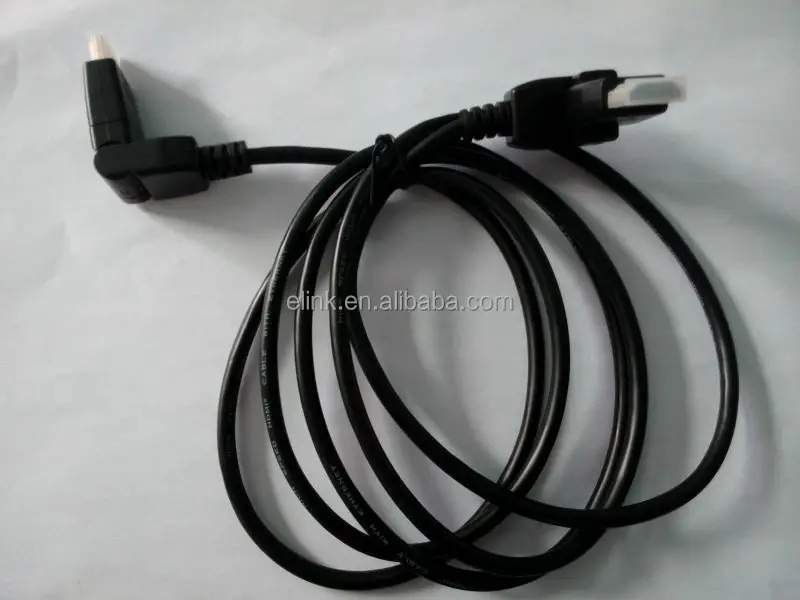

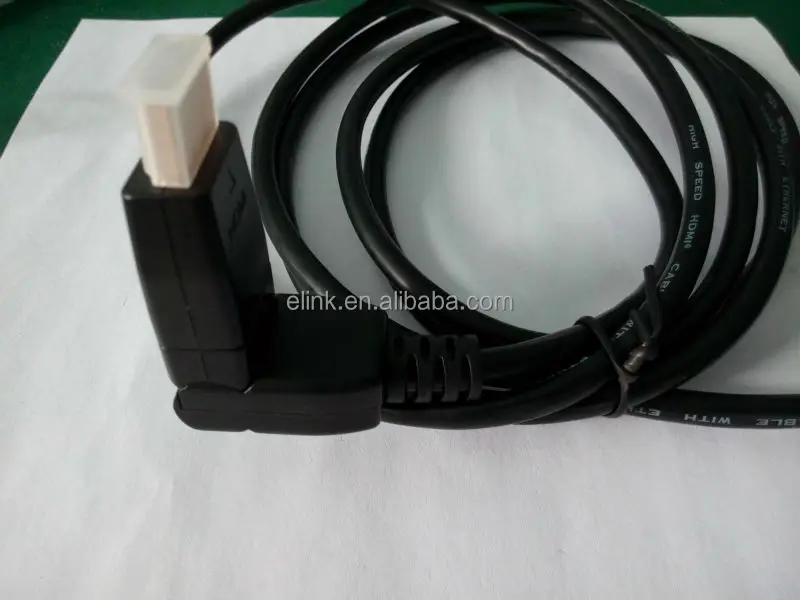

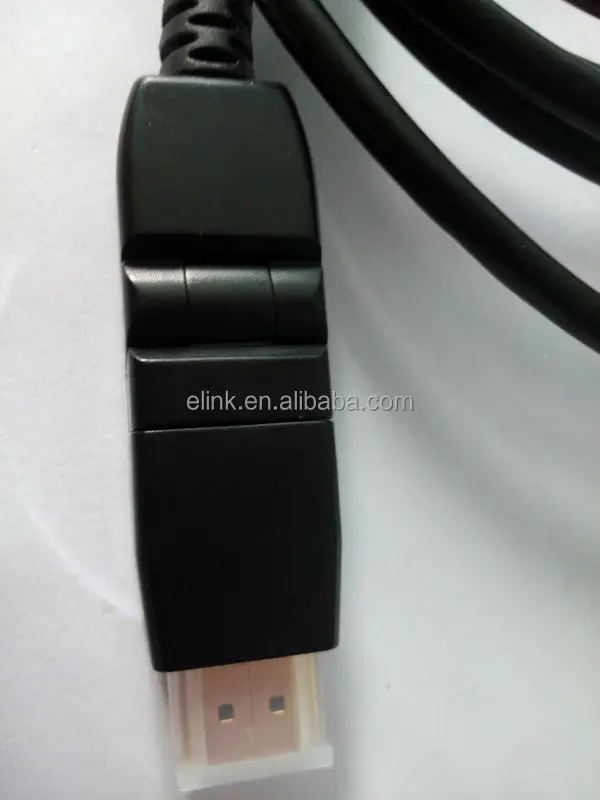

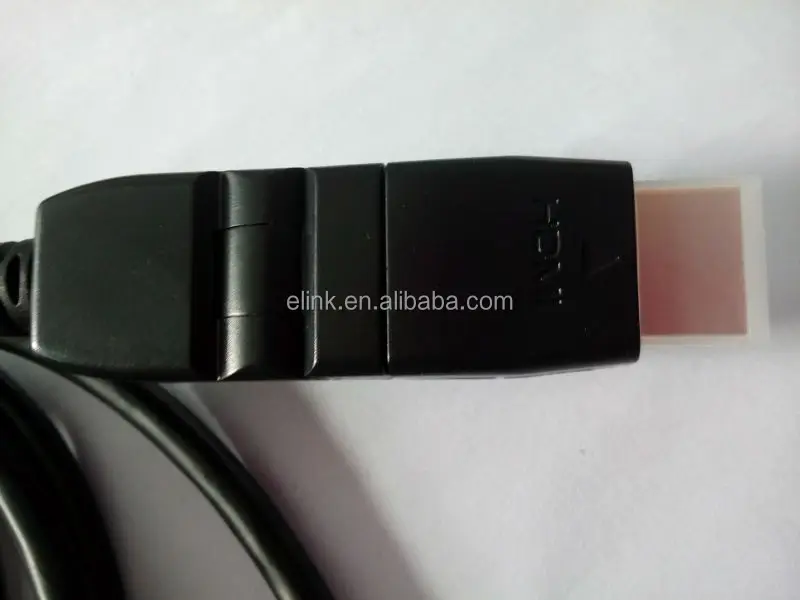

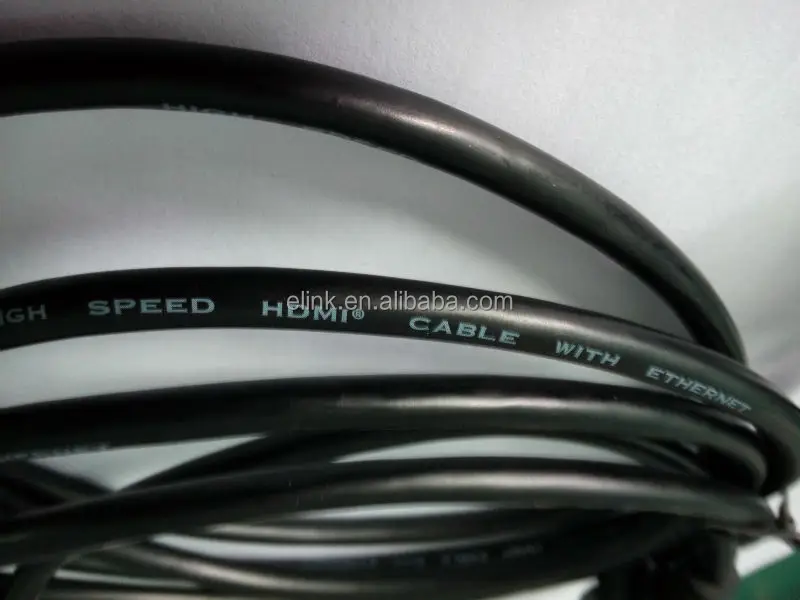

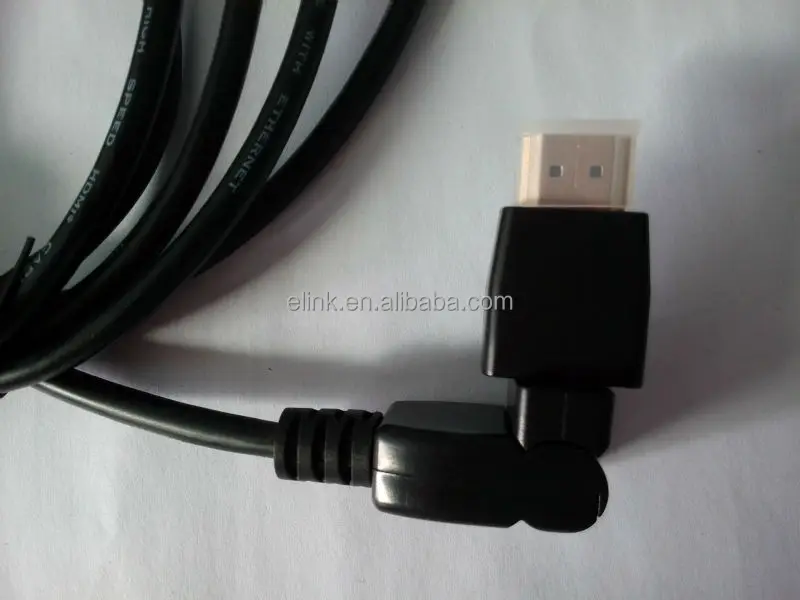

5.Detail Pictures of  Swing hdmi cable

 6.Packing of 360 degre hdmi cable


7. Our adavantage about 360 degre hdmi cable
  • HDMI Certified: Yes
  • HDCP Compliant: Yes
  • CEC Compliant: Yes
  • ROHS Compliant: Yes
  • UL Certified: Yes
  • Supports SACD: Yes
  • Supports TrueHD DTS-HD: Yes
  • China facotry directly manufacture:Yes
